Plan Sifter |
 |
 |
Plan Sifter |
|
|
Maize Meal |
1000 - 1300kg per hour |
Maize Grits |
1000 – 1500kg per hour |
| Wheat Flour | 800 – 1000 kg per hour |
Capacity |
0.75kW |
Motor RPM |
1450 RPM |
| Width | 1100mm |
| Length | 1100mm |
| Height | 1400mm |
| Mass | 340kg. |
| Size of sifting frames | 648mm (W) x 708mm (L) |
| Number of sifting frames | 8 |
| Wood finish (Stages) | Solid Saligna. Plated inside. |
| Screens | Nylon, Stainless steel optional sizes |
| Separations | Three standard – four maximum |
Standard without elevated frame for bagging.
| V-belts |
| Sifter Screens |
| Sifter Frames |
| Felt |
| Fabric Socks |
| Fibre Rods |
| Bearing |
Standard w/o bottom frame |
|
Optional - fully clad with galvanized plate |
 |
Optional High Quality Wooden Sifter Box |
 |
IMPORTANT MAINTENANCE REQUIREMENTS: |
A heavy duty hub with bearing is supplied. The nut has to checked and tightened after the first 24 hours of operation and again checked, tightened and greased with maximum 14 days intervals. Do not over tighten but ensure bearing sits tight in housing without any lift or play. Ensure wheel can still turn freely. |
IMPORTANT: Tighten sifter box to base after one hour of operation and check again daily. |
Check V-belt when checking hub. Do not over tighten. A too tight belt may cause the motor shaft to snap. |
IMPORTANT: Check fibre glass rods are tightened daily. Check for slippage. |
Ensure sifterbox and base is completely level. |
Do not attempt to work or adjust to sifter at all when moving. Ensure machine is withoout power before working on it. Check twice. |

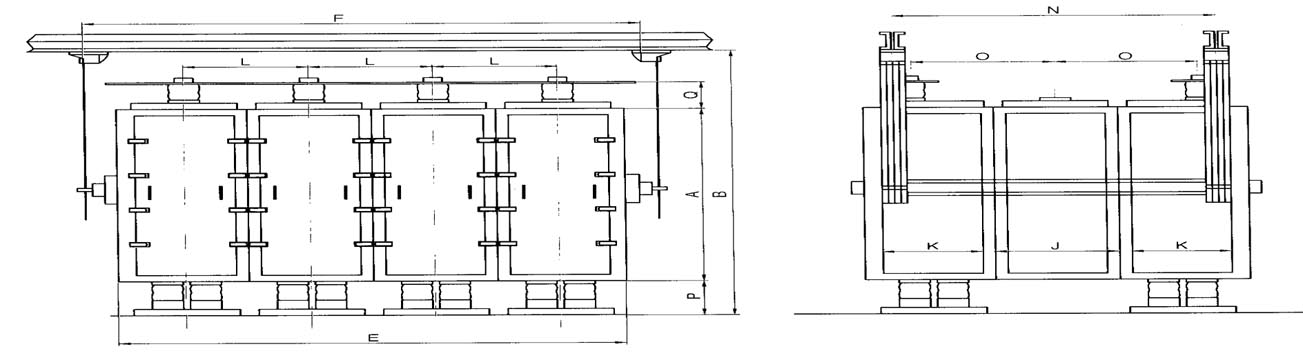

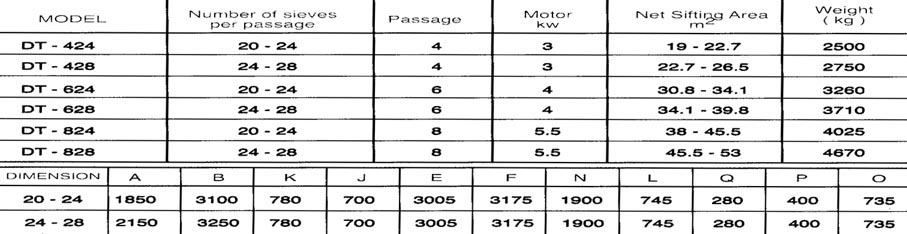

Planetary Sifters: |
Large capacity Plan Sifters. |
 |
Technical specifications may be altered without notice. All capacities
shown are indicative only
