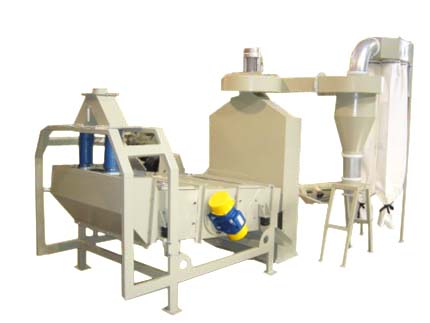

Datasheet: Seed Cleaner
|
|
Model: SG3000 to SG15000
|
Capacity: Approximately 2500 - 10000 kg per hour based on quality and
type of seed, moisture, quantity of foreign matter etc.
|
Main vibration motors (2) |
0.75kW |
|
Aspirator motor |
2.2 - 4 kW |
| Motor RPM – Vibration |
2840RPM |
| Motor RPM - Aspirator |
2840RPM |
| Hopper size |
±50kg Wheat |
| Feed adjustment |
Manual |
| Discharge |
Over, Under, selected sizesLower mass |
All motors are 3 phase 380V Volt, 50 Hz unless otherwise indicated
Dimension & Mass (For 2,500kg/hr wheat)
| Length |
1702mm |
| Width |
1510mm |
| Height |
2000mm |
| Mass |
489kg |
Size of steel screens
| Length |
920mm |
| Width |
900mm |
| Number of screens |
2 |
Height of inlet, waste and cleaned product at exit
| Inlet |
1790mm |
| Waste 1 |
1200mm |
| Waste 2 |
659mm |
Spare parts & Consumables
| Product Name |
| Screens |
| Agitators |
| Dust filter bags |
Technical Data
| Model |
Required Air m3/min |
Sifter Sizes (cm) |
Capacity (t/h) |
Weight (kg) |
| |
Bucket |
Cleaning |
Width (cm) |
Length (cm) |
Bucket |
Cleaning |
Net |
Gross |
| MSG 100x150 |
70 |
50 |
100 |
2x75 |
15 |
8 |
540 |
740 |
| MSG 100x200 |
90 |
50 |
100 |
2x100 |
25 |
15 |
550 |
800 |
| MSG 150x200 |
130 |
80 |
150 |
2x100 |
80 |
20 |
1250 |
1400 |
Technical specifications may be altered without notice. All capacities
shown are indicative only
